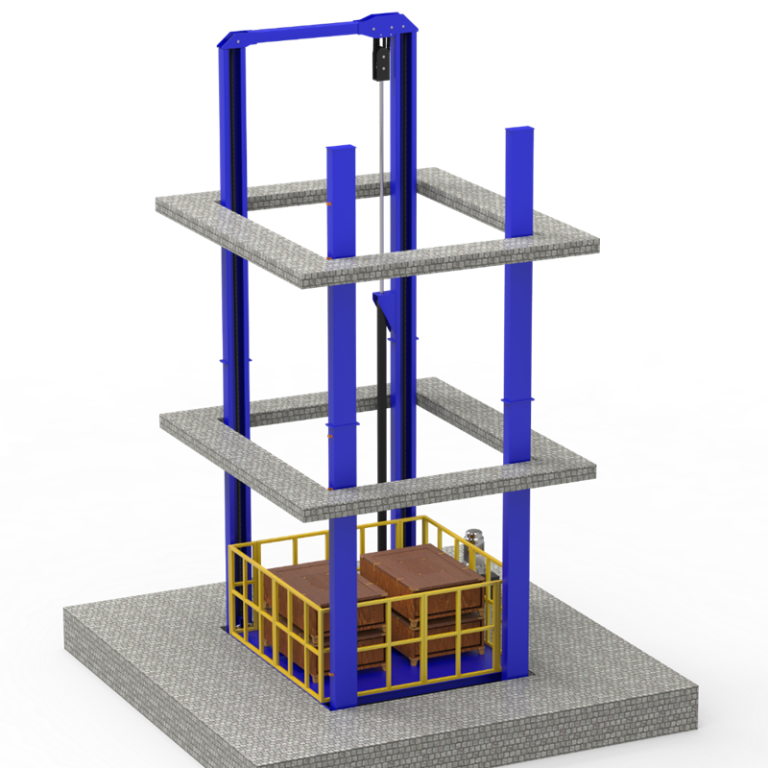

Four post lift for cargo
Four post lift is a kind of heavy-duty cargo lift solutions, widely used in warehouse, factories, vertical production lines, and any buildings where material handling is needed. Safety and efficiency are the major consideration of our design and manufacture on lift products. Custom service available for different work requirements.
Product Description
high precision hydraulic transmission, stable lifting, simple operation.
low failure rate, high strength chain drive, large load capacity, long service life and high safety.
Custom design is available in loading capacity, platform size and travel height, based on your work requirements.
Product Parameter
| Model | Capacity | Lifting Height | Platform Size | Pit Size | Motor Power |
| HDL0.8-6 | 800kg | 5500mm | 4500*1600 | 1700*5200*250mm | 4kw |
| HDL1-12 | 1000kg | 12000mm | 2000*2000 | 1400*1900*250mm | 4kw |
| HDL1.5-6 | 1500kg | 6000mm | 1500*1500 | 2400*2300*250mm | 4kw |
| HDL2-15 | 2000kg | 15000mm | 1800*1500 | 1700*2200*250mm | 4kw |
| HDL2.5-3.5 | 2500kg | 3500mm | 5500*2500 | 5600*3100*180mm | 4kw |
| HDL3-9 | 3000kg | 9000mm | 2000*2000 | 2200*2900*250mm | 4kw |
| HDL3-7 | 3000kg | 7000mm | 6500*4100 | 6600*4930*180mm | 5.5kw |
| HDL3.5-5 | 3500kg | 5000mm | 5600*3000 | 5700*3700*250mm | 4kw |
| HDL4-4.5 | 4000kg | 4500mm | 6000*3600 | 6100*4200*180mm | 5.5kw |
| HDL5-5.5 | 5000kg | 5500mm | 1700*6100 | 1825*6700*200mm | 5.5kw |
| HDL6-5 | 6000kg | 4600mm | 5000*2500 | 5100*3100*350mm | 4kw*2 |
| HDL10-7 | 10000kg | 7000mm | 8000*3000 | 8200*3600*380mm | 7.5kw*2 |
Product Features
WORKING PLATFORM
The working platform of car lift is made of checkered steel plate (skid-proof plate), which could prevent people and goods from slipping down from platform.
Protect safety of Operators.
KEY PARTS GUIDE RAILS
HODA use 300 x170 x170 x5mm high strength steel plate bending to make guide rails, Q345B, with 17% more rigidity strength than normal steel.
It is of high structural stability.
KEY PARTS LEAF CHAINS
Leaf chain could bear 4 times weight than the goods lift's rated capacity. With such heavy duty features and enduring use-life, it will save the cost of the replacement and provide top class safety .
KEY PARTS SAFETY WIRE ROPE
HODA cargo lift is equipped with 4 pcs safety wire ropes, diameter 8mm~12mm.
In case the chain breaks, the ropes will help to hold the platform.
KEY PARTS HYDRAULIC POWER UNIT
The hydraulic power unit has incredible
features: small, compact structure,
lightweight, highly efficient, great working
pressure, reliable performance and no
leaks.
KEY PARTS SENSOR SWITCH
HODA use DELIXI brand or equivalent
brand sensor switch. It has much more higher precision and sensitivity.
So that we use o as to use it to set the lifting height and execute the anti-falling device when platform arrive at the floor.
KEY PARTS PLC CONTROL SYSTEM
Equipped with PLC (Programmable Logic Controller), switched-mode power supply, voltage display, manual/automatic,
voltage transformer and other functions, it will help you operate easily and safely.
HIGH-PRECISION WHEELS
The guide rail wheels are made of high quality Nylon material.
The wheels are maintenance-free and the wheels designed to have more contact area with the guide rails, which make lift work smoothly.
Working Cases
Optional Parts
Motor Protection Box
Overload Warning Device
Electric roller shutter landing doors
Stainless steel cabin(without door)
Remote control
Ramp
